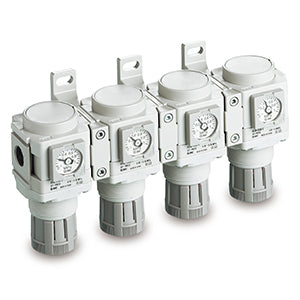

MODULAR STYLE REGULATOR
Features
- Out port at the back of the product
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 4000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR40MK-F0403E-D
- Item number: 02176547
- Body Size: 40
- Backflow Function: K (w/Backflow Function)
- Thread: F (G)
- IN Port Size: 04 (1/2)
- OUT Port Size: 03 (3/8)
- Options: E [w/Square Embedded Type Pressure Gauge (w/Limit Indicator)]
- Set pressure: 0.05 to 0.85 MPa Setting
- Exhaust Mechanism: Relieving
- Knob: Downward
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Lead time: 28 days
- Country of origin: CN
