SMC · Regulators
AR20MK-F0202E-D
excl. VAT · €46,94 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | AR20MK-F0202E-D |
|---|

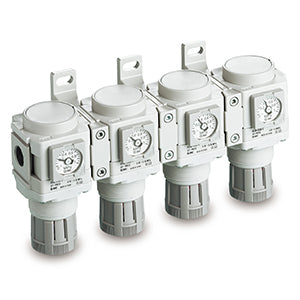

MODULAR STYLE REGULATOR
Features
- Out port at the back of the product
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 4000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR20MK-F0202E-D
- Item number: 02176552
- Options: E [w/Square Embedded Type Pressure Gauge (w/Limit Indicator)]
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Body Size: 20
- OUT Port Size: 02 (1/4)
- Set pressure: 0.05 to 0.85 MPa Setting
- Knob: Downward
- Exhaust Mechanism: Relieving
- IN Port Size: 02 (1/4)
- Backflow Function: K (w/Backflow Function)
- Thread: F (G)
- Lead time: 28 days
- Country of origin: CN
Documents
More part numbers in this series
AR20M-F0202-D€24,96AR20M-F0202-Y-D€24,96AR20M-F0202E-D€39,12AR20M-F0202E-Y-D€39,12AR20MK-F0202-D€24,96AR20MK-F0202E-DThis itemAR30M-F0302-D€29,77AR30M-F0302-Y-D€29,77AR30M-F0302E-D€40,63AR30M-F0302E-Y-D€40,63AR30MK-F0302-D€29,77AR30MK-F0302E-D€40,63AR40M-F0403-D€40,58AR40M-F0403-Y-D€40,58AR40M-F0403E-D€51,52
