SMC · Regulators
AR20M-F0202-D
excl. VAT · €29,95 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | AR20M-F0202-D |
|---|

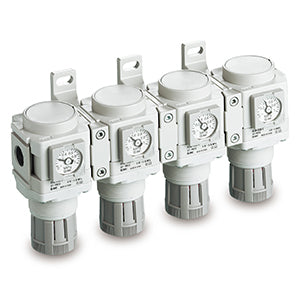

MODULAR STYLE REGULATOR
Features
- Out port at the back of the product
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 4000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR20M-F0202-D
- Item number: 02209784
- Options: w/o Mounting Option
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge
- Knob: Downward
- Set pressure: 0.05 to 0.85 MPa Setting
- OUT Port Size: 02 (1/4)
- Body Size: 20
- Exhaust Mechanism: Relieving
- IN Port Size: 02 (1/4)
- Backflow Function: None
- Thread: F (G)
- Lead time: 5 days
- Country of origin: CN
