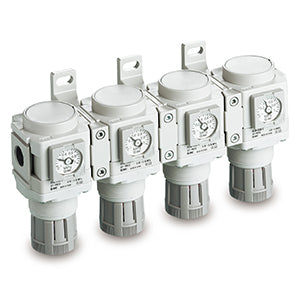

AR20M-D to AR40M-D, Modular Style Common Supply Regulator & Regulator with Backflow Function | AR30M-F0302E-D

MODULAR STYLE REGULATOR

Features

• Out port at the back of the product
• Up to 0.85 MPa set pressure
• Maximum flow rate up to 4000 l/min (ANR, 0.7MPa).

Specifications

• Part number: AR30M-F0302E-D
• Item number: 02181149
• Options: E [w/Square Embedded Type Pressure Gauge (w/Limit Indicator)]
• Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge
• Knob: Downward
• Set pressure: 0.05 to 0.85 MPa Setting
• OUT Port Size: 02 (1/4)
• Body Size: 30
• Exhaust Mechanism: Relieving
• IN Port Size: 03 (3/8)
• Backflow Function: None
• Thread: F (G)
• Lead time: 5 days
• Country of origin: CN

Documents

• Catalogue
• CAD model (STEP)
