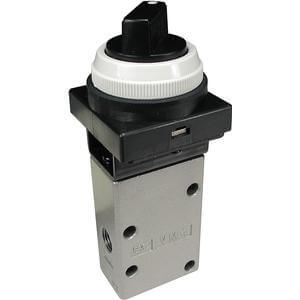

EVM400, 400 Series, 3 Port Mechanical Valve, European | EVM430-F01-01
€60,50
Skip to product information
EVM400, 400 Series, 3 Port Mechanical Valve, European | EVM430-F01-01
€60,50
VAT not included.
MECHANICAL VALVE
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².
Features
- Fluid: air
- Operating pressure: -100kPa to 1.0MPa
- Effective area (Cv): 7mm 2 (0.38)
- Ambient and fluid temperature: -5° to 60°C (no freezing)
- Port size (nominal size): 1/8 (6A)
- European threads-G(PF)
Specifications
- Part number: EVM430-F01-01
- Item number: 00096563
- Actuator Type: 01 (Roller Lever)
- Suffix: None
- Lead time: 5 days
- Country of origin: JP
