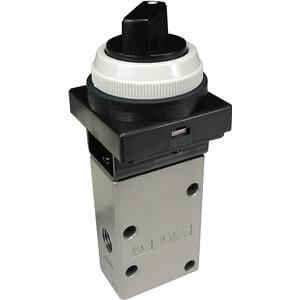

MECHANICAL VALVE
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².
Features
- Fluid: air
- Operating pressure: -100kPa to 1.0MPa
- Effective area (Cv): 7mm 2 (0.38)
- Ambient and fluid temperature: -5° to 60°C (no freezing)
- Port size (nominal size): 1/8 (6A)
- European threads-G(PF)
Specifications
- Part number: EVM430-F01-30B
- Item number: 00096569
- Actuator Type: 30 (Push Button (Mushroom))
- Suffix: B (Push Button Selector Color Black)
- Lead time: 5 days
- Country of origin: JP
