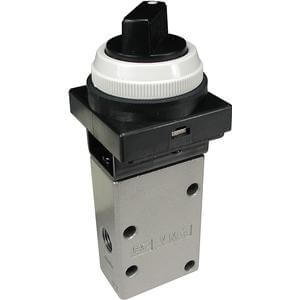

EVM400, 400 Series, 3 Port Mechanical Valve, European | EVM430-F01-36

3 PORT MECHANICAL VALVE

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².

Features

• Fluid: air
• Operating pressure: -100kPa to 1.0MPa
• Effective area (Cv): 7mm 2 (0.38)
• Ambient and fluid temperature: -5° to 60°C (no freezing)
• Port size (nominal size): 1/8 (6A)
• European threads-G(PF)

Specifications

• Part number: EVM430-F01-36
• Item number: 00123105
• Actuator Type: 36 (Key Selector (2 Position))
• Suffix: None
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
