SMC · Vacuum Ejectors
ZH10DSA-06-06-08
excl. VAT · €31,78 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
In stock
| Part number | ZH10DSA-06-06-08 |
|---|---|
| Nozzle Diameter | 10 (Ø 1.0 mm) |
| Model | D (Body Ported Style) |
| Vacuum Pressure | S [-90 kPa |
| -89 kPa (Box Style)] | |
| Port SUP. | 06 (One-touch Fitting Ø6 mm) |
| Port VAC. | 06 (One-touch Fitting Ø6) |
| Port EXH. | 08 (One-touch Fitting Ø8) |
| Accessories | W/ Bracket - W/o Silencer (or None in the Case of Box Style) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |

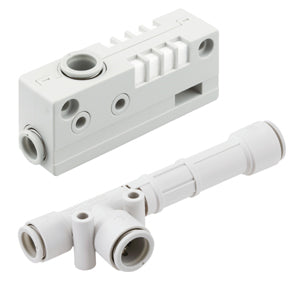

- Body ported type/ Box type vacuum ejector. Compact and lightweight
- Suction flow rate up to 155 l/min
- Nozzle diameters: 0.5, 0.7, 1, 1.3, 1.5, 1.8 and 2 mm
- Multiple piping variations: One-touch fittings and screw-in connections (G/Rc/NPT)
- 4 mounting types: direct, standard bracket, L-bracket or DIN rail.
Key features
- One-touch fittings: Ø 6, 8, 10 and 12 mm. Screw-in connections: 1/8" to 1/2" (Rc/G).
