SMC · Vacuum Ejectors
ZH05BLA-06-06
excl. VAT · €36,41 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | ZH05BLA-06-06 |
|---|---|
| Accessories | W/ Bracket - W/o Silencer (or None in the Case of Box Style) |
| Nozzle Diameter | 05 (Ø 0.5 mm) |
| Model | B (Box Style) |
| Port SUP. | 06 (One-touch Fitting Ø6 mm) |
| Port EXH. | None |
| Vacuum Pressure | L (-48 kPa [ZH05 to 13]; -66 kPa [ZH15 to 20]) |
| Port VAC. | 06 (One-touch Fitting Ø6) |
| Lead time (days) | 20 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |

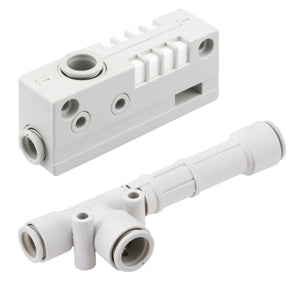

- Body ported type/ Box type vacuum ejector. Compact and lightweight
- Suction flow rate up to 155 l/min
- Nozzle diameters: 0.5, 0.7, 1, 1.3, 1.5, 1.8 and 2 mm
- Multiple piping variations: One-touch fittings and screw-in connections (G/Rc/NPT)
- 4 mounting types: direct, standard bracket, L-bracket or DIN rail.
Key features
- One-touch fittings: Ø 6, 8, 10 and 12 mm. Screw-in connections: 1/8" to 1/2" (Rc/G).
Documents
More part numbers in this series
ZH05BLA-06-06This itemZH05BSA-06-06€30,34ZH05BSA-F01-F01€34,45ZH05DLA-06-06-06€18,25ZH05DLA-F01-F01-F01€24,30ZH05DSA-06-06-06€18,25ZH05DSA-F01-F01-F01€24,30ZH07BLA-06-06€36,09ZH07BLA-F01-F01€40,57ZH07BSA-06-06€36,09ZH07BSA-F01-F01€40,57ZH07DLA-06-06-06€20,30ZH07DLA-F01-F01-F01€27,07ZH07DSA-06-06-06€20,30ZH07DSA-F01-F01-F01€27,07
