SMC · Mechanical Valves / Hand Valves
VZM550-01-01S
excl. VAT · €95,52 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VZM550-01-01S |
|---|---|
| 5/2 mechanical/manual valve | |
| pilot operated | |
| thread Rc1/8 | |
| metal roller lever | |
| Country of origin | JP |
| TARIC code | 8481209090 |

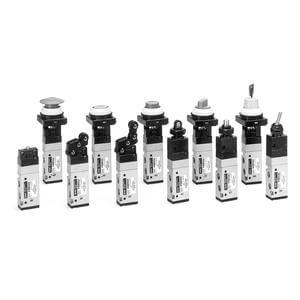

VZM500, 5 Port Mechanical Valve Series
Key features
- Fluid: air, inert gas
- Operating pressure: 0.15 to 0.7MPa
- Ambient and fluid temp: -5° to 60°C (no freezing)
- Effective area (mm²): 10,9
- Port size: main valve Rc(PT) 1/8, pilot valve (EXH) M5x0.8
Documents
More part numbers in this series
NVZM450-N01-34B€77,19EVZM450-F01-00€62,27EVZM450-F01-01€69,78EVZM450-F01-05€82,25EVZM450-F01-08€78,45EVZM450-F01-33€75,98EVZM450-F01-34B€77,18EVZM450-F01-34G€77,25EVZM450-F01-34R€77,18EVZM450-F01-01S€72,21EVZM550-F01-00€66,56EVZM550-F01-01€76,36EVZM550-F01-02€84,52EVZM550-F01-05€92,68EVZM550-F01-06€97,55
