SMC · Mechanical Valves / Hand Valves
EVZM550-F01-01
excl. VAT · €91,63 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | EVZM550-F01-01 |
|---|
MECAHNICAL VALVE

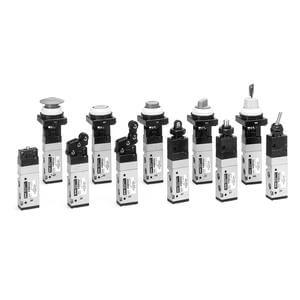

The VZM series is a 5 port mechanical valve. It is compact in design with a large flow capacity (VZM400 10mm², VZM500 10,9mm²). The VZM is available in a metal or rubber spool style, with a variety of actuator choices and optional external pilot.
Features
- Fluid: air, inert gas
- Operating pressure: 0.15 to 0.7MPa
- Ambient and fluid temp: -5° to 60°C (no freezing)
- Effective area (mm²): 10,9
- Thread: G(PF)
- Port size: main valve 1/8, pilot valve (EXH) M5x0.8
Specifications
- Part number: EVZM550-F01-01
- Item number: 00096844
- Body Option: 0 (Standard)
- Style: 01 (Roller Lever)
- Suffix: None
- Accessory: None
- Lead time: 5 days
- Country of origin: JP
