EVZM400, 5 Port Mechanical Valve, Metal Seal, European | EVZM450-F01-33

5 PORT MECHANICAL VALVE

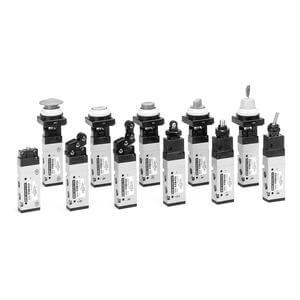

The VZM series is a 5 port mechanical valve. It is compact in design with a large flow capacity (VZM400 10mm², VZM500 10,9mm²). The VZM is available in a metal or rubber spool style, with a variety of actuator choices and optional external pilot.

Features

• Fluid: air, inert gas
• Operating pressure: 0.15 to 1.0MPa
• Ambient and fluid temp: -5° to 60°C (no freezing)
• Effective area (mm²): 10
• Thread: G(PF)
• Port size: main valve 1/8, pilot valve (EXH) M5x0.8

Specifications

• Part number: EVZM450-F01-33
• Item number: 00160220
• Suffix: None
• Accessory: None
• Style: 33 (Push Button (Flat Head))
• Body Option: 0 (Standard Internal Pilot)
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
