SMC · Mechanical Valves / Hand Valves
VM1000-4NU-00
excl. VAT · €20,86 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VM1000-4NU-00 |
|---|

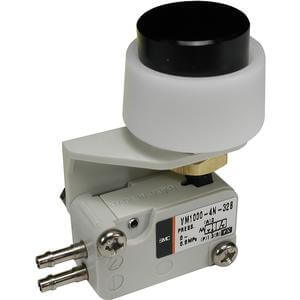

3 PORT MECHANICAL VALVE
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².
Features
- Fluid: air
- Operating pressure: 0 to 0.8 MPa
- Effective area (Cv): 1mm 2 (0.055)
- Style of valve: N.C. poppet
- Number of ports: 2 or 3
- Piping: side or bottom
Specifications
- Part number: VM1000-4NU-00
- Item number: 00033936
- Number of Ports: 0 (3 Port)
- Piping: 0 (Side Ported)
- Overall Movement: 0 (4.8mm)
- Applicable Tubing: 4NU [Soft Nylon Ø4/2.5(TS0425)
- Nylon Ø4/3(T0403):
- Polyurethane Ø4/2.5(TU0425)]:
- Actuator Type: 00 (Basic Style)
- Suffix: None
- Lead time: 5 days
- Country of origin: JP
