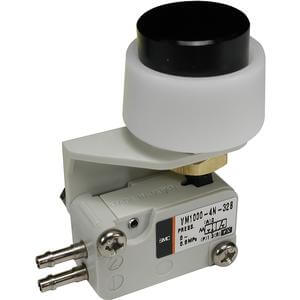

VM1000, Micro Mechanical Valve | VM1000-4N-08

MECHANICAL VALVE

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².

Features

• Fluid: air
• Operating pressure: 0 to 0.8 MPa
• Effective area (Cv): 1mm 2 (0.055)
• Style of valve: N.C. poppet
• Number of ports: 2 or 3
• Piping: side or bottom

Specifications

• Part number: VM1000-4N-08
• Item number: 00033903
• Number of Ports: 0 (3 Port)
• Piping: 0 (Side Ported)
• Overall Movement: 0 (4.8mm)
• Applicable Tubing: 4N [Nylon Ø4/2.5(T0425)]
• Actuator Type: 08 (Flip Toggle)
• Suffix: None
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Installation manual
