SMC · Mechanical Valves / Hand Valves

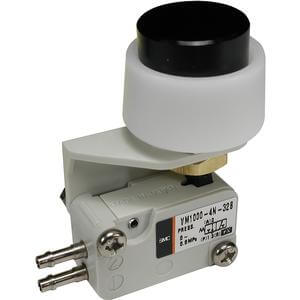

VM1000-4N-32R
excl. VAT · €33,06 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | VM1000-4N-32R |
|---|
MECHANICAL VALVE
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².
Features
- Fluid: air
- Operating pressure: 0 to 0.8 MPa
- Effective area (Cv): 1mm 2 (0.055)
- Style of valve: N.C. poppet
- Number of ports: 2 or 3
- Piping: side or bottom
Specifications
- Part number: VM1000-4N-32R
- Item number: 00033928
- Number of Ports: 0 (3 Port)
- Piping: 0 (Side Ported)
- Overall Movement: 0 (4.8mm)
- Applicable Tubing: 4N [Nylon Ø4/2.5(T0425)]
- Actuator Type: 32 (Push Button)
- Suffix: R (Red Push Button)
- Lead time: 5 days
- Country of origin: JP
