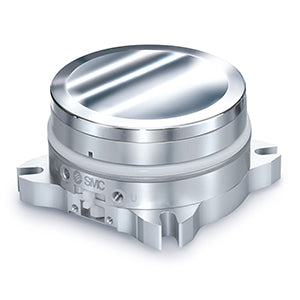

- Centring unit
- Heavy workpieces can be aligned and positioned with small cylinders
- Workpieces can be moved in any direction and even rotated 360°
- Max. allowable load weight up to 1000 kg
- Centering accuracy: ±1 mm or less
- Built-in air locking mechanism
- 3 types of table material can be selected
- External photo sensor can be mounted.
Key features
- Alignment and positioning of transferred work pieces.
- Contributes to space saving on conveyor lines.
- Max. allowable load weight: 1000 kg.
- Workpieces can be moved in any direction.
- Ball bearings allow for smooth operation.
- Table centering accuracy ± 1 mm or less (Workpiece not loaded).
- Table center movable range: Max. ø100 mm.
Specifications
- Allowable Load Weight: 6 (6 KN)
- Stroke: 30 (30mm, MACM6)
- Table Material: G [Stainless Steel (Heat Treatment + Buffing)]
- Sensor Type: Unsupported
- Relief Port: No
Additional information
- Part number: MACM6-30G-X131
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
