SMC · Specialty Actuators

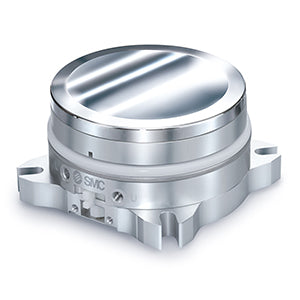

MACM10-50GPV-X131
excl. VAT · €2.177,65 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | MACM10-50GPV-X131 |
|---|---|
| Relief Port | V (Yes) |
| Stroke | 50 (50mm, MACM10) |
| Table Material | G [Stainless Steel (Heat Treatment + Buffing)] |
| Sensor Type | P (Port Side Photo Sensor Mounted Type) |
| Allowable Load Weight | 10 (10 KN) |
| Minimum order quantity | 0 |
- Centring unit
- Heavy workpieces can be aligned and positioned with small cylinders
- Workpieces can be moved in any direction and even rotated 360°
- Max. allowable load weight up to 1000 kg
- Centering accuracy: ±1 mm or less
- Built-in air locking mechanism
- 3 types of table material can be selected
- External photo sensor can be mounted.
Key features
- Alignment and positioning of transferred work pieces.
- Contributes to space saving on conveyor lines.
- Max. allowable load weight: 1000 kg.
- Workpieces can be moved in any direction.
- Ball bearings allow for smooth operation.
- Table centering accuracy ± 1 mm or less (Workpiece not loaded).
- Table center movable range: Max. ø100 mm.
