SMC · Grippers & Escapements

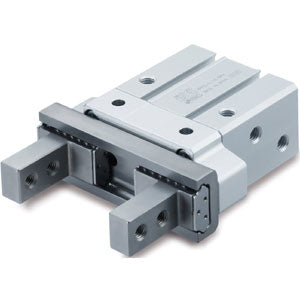

JMHZ2-8D
excl. VAT · €378,94 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | JMHZ2-8D |
|---|---|
| Bore Size | 8 (8mm) |
| Action | D (Double Acting) |
| Finger Option | Basic |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Auto Switch | No Switch |
| Made to Order | None |
| Lead time (days) | 19 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- The MHZ2 series is a standard type parallel air gripper, taking the place of the MHQ(G)2 series. A linear guide provides high rigidity and high accuracy. MHZ2 can operate under higher pressure even at a larger holding point and overhang. High degree of mounting precision is achieved and mounting repeatability is improved.
Key features
- Bore sizes (mm): 8, 12, 16, 20
- Single/double-acting
- Repeatability: ±0.01 mm
- Compact auto switches can be mounted directly.
