SMC · Grippers & Escapements
JMHZ2-20C
excl. VAT · €522,68 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | JMHZ2-20C |
|---|---|
| Bore Size | 20 (20mm) |
| Action | C (Single Acting, Normally Closed) |
| Finger Option | Basic |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Made to Order | None |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |

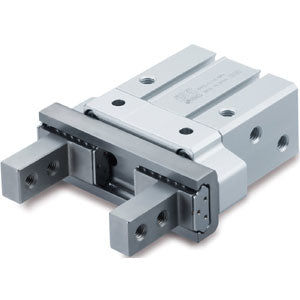

- The MHZ2 series is a standard type parallel air gripper, taking the place of the MHQ(G)2 series. A linear guide provides high rigidity and high accuracy. MHZ2 can operate under higher pressure even at a larger holding point and overhang. High degree of mounting precision is achieved and mounting repeatability is improved.
Key features
- Bore sizes (mm): 8, 12, 16, 20
- Single/double-acting
- Repeatability: ±0.01 mm
- Compact auto switches can be mounted directly.
