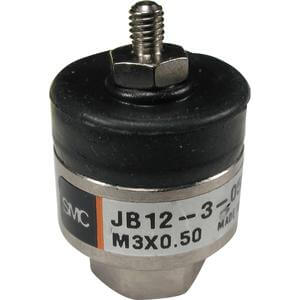

JB, Floating Joint for Compact Cylinders – JB16-4-070

• The JB series floating joint was designed for compact cylinders. JB series is compact and is suitable for high tensile stresses. Long life is established with a dustproof cover and the rotation angle is ±5°.

Specifications

• Applicable Bore Size: 16 (16 mm)
• Nominal Thread: 4-070 (M4 x 0.7)
• Option: None

Additional information

• Part number: JB16-4-070
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8479899790

Documents

• Catalogue (PDF)
• CAD model
