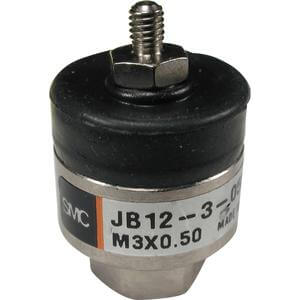

JB, Floating Joint for Compact Cylinders – JB12-3-050

• The JB series floating joint was designed for compact cylinders. JB series is compact and is suitable for high tensile stresses. Long life is established with a dustproof cover and the rotation angle is ±5°.

Specifications

• Applicable Bore Size: 12 (12 mm)
• Nominal Thread: 3-050 (M3 x 0.5)
• Option: None

Additional information

• Part number: JB12-3-050
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8479899790

Documents

• Catalogue (PDF)
• CAD model
