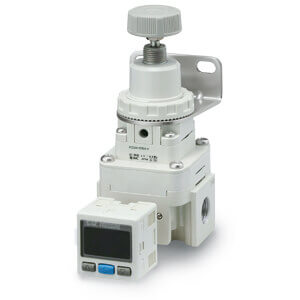

IR1000/2000/3000-A, Precision Regulator | IR1010-F01B-A

PRECISION REGULATOR

Setting sensitivity 0.2 % F.S; repeatability ±0.5 % F.S. 3 sizes with 3 set pressure ranges: 0.005 to 0.2 MPa; 0.01 to 0.4 MPa; 0.01 to 0.8 MPa. Air consumption: 1 l/min or less. Maximum flow range: 4000 l/min. Port sizes: from 1/8 to 1/2. Standard options: bracket; pressure gauge.

Features

• Lightweight.
• Addition of bottom and front exhaust.
• Precision regulator, with repeatability ± 0.5 % (full span). Sensitivity: 0.2 % (full span).
• Max. supply pressure: 1.0 MPa.

Specifications

• Part number: IR1010-F01B-A
• Item number: 01470682
• Body Size: 1
• Set pressure: 1 (0.01 to 0.4 MPa)
• Port Size: 01 (1/8)
• Semi-standard: None
• Option: B (With bracket)
• Exhaust Direction: 0 (Bottom Exhaust)
• Thread: F (G)
• Lead time: 4 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Operation manual 2
• Installation manual
