SMC · Regulators
IR1000-F01G-A
excl. VAT · €123,60 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | IR1000-F01G-A |
|---|

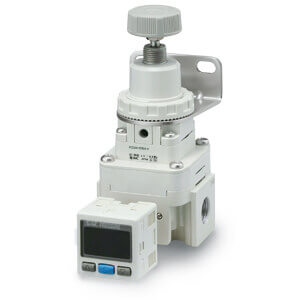

PRECISION REGULATOR
Setting sensitivity 0.2 % F.S; repeatability ±0.5 % F.S. 3 sizes with 3 set pressure ranges: 0.005 to 0.2 MPa; 0.01 to 0.4 MPa; 0.01 to 0.8 MPa. Air consumption: 1 l/min or less. Maximum flow range: 4000 l/min. Port sizes: from 1/8 to 1/2. Standard options: bracket; pressure gauge.
Features
- Lightweight.
- Addition of bottom and front exhaust.
- Precision regulator, with repeatability ± 0.5 % (full span). Sensitivity: 0.2 % (full span).
- Max. supply pressure: 1.0 MPa.
Specifications
- Part number: IR1000-F01G-A
- Item number: 01444624
- Body Size: 1
- Set pressure: 0 (Body Size 1, 2: [0.005 to 0.2 MPa]; Body Size 3: [0.01 to 0.2 MPa])
- Port Size: 01 (1/8)
- Semi-standard: None
- Option: G (Round type pressure gauge)
- Exhaust Direction: 0 (Bottom Exhaust)
- Thread: F (G)
- Lead time: 27 days
- Country of origin: JP
