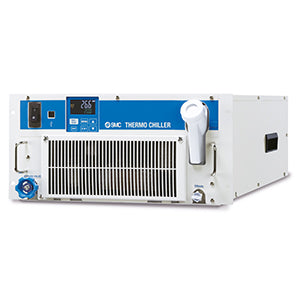

Circulating Fluid Temperature Controller, Rack Mount Type, 415/480VAC - HRR – HRR050-AF-40-MT2U

• Can be mounted in a 19-inch rack

Key features

• Cooling capacity: 0.95 to 5 kW (50 Hz)
• Temperature stability: ±0.1°C
• Set temperature range: 5 to 35 °C; 15 to 35 °C (HRR010)
• Space Saving
• With heating function and self-diagnosis.

Specifications

• Cooling Capacity: 050 [4800/5900, (50/60 Hz)]
• Cooling Method: A (Air-cooled)
• Pipe Thread: F (G, w/Rc-G Conversion Fitting)
• Power Supply: 40 [3-phase 380 to 415 VAC (50/60 Hz), 3-phase 460 to 480 VAC (60 Hz)]
• DI Water Piping: M (Applicable to DI Water Piping)
• High-pressure Pump Mounted: T2 (High-pressure Pump Mounted)
• Suffix: U (Conforming to UL Standards)
• Feet: None
• Flow Sensor: None

Additional information

• Part number: HRR050-AF-40-MT2U
• Lead time (days): 120
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8418690091

Documents

• Catalogue (PDF)
• CAD model
• Datasheet
• Operation manual
• Installation manual
