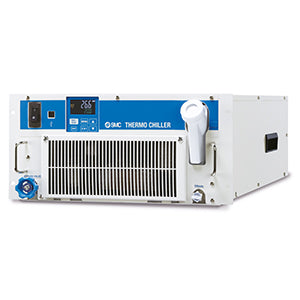

Circulating Fluid Temperature Controller, Rack Mount Type, 230VAC - HRR – HRR010-AF-20-U

• Can be mounted in a 19-inch rack

Key features

• Cooling capacity: 0.95 to 5 kW (50 Hz)
• Temperature stability: ±0.1°C
• Set temperature range: 5 to 35 °C; 15 to 35 °C (HRR010)
• Space Saving
• With heating function and self-diagnosis.

Specifications

• Cooling Capacity: 010 [950/1100, (50/60 Hz)]
• Cooling Method: A (Air-cooled)
• Pipe Thread: F (G, w/Rc-G Conversion Fitting)
• Power Supply: 20 [Single-phase 200 to 230 VAC (50/60 Hz)]
• DI Water Piping: None
• High-pressure Pump Mounted: None
• Suffix: U (Conforming to UL Standards)
• Feet: None
• Flow Sensor: None

Additional information

• Part number: HRR010-AF-20-U
• Lead time (days): 120
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8418690091

Documents

• Catalogue (PDF)
• CAD model
• Datasheet
• Operation manual
• Installation manual
