SMC · Circulating Fluid Temperature Controller
HEF002-A6-P
excl. VAT · €3.216,18 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | HEF002-A6-P |
|---|---|
| Cooling Capacity | 002 (220 W) |
| Power Supply | 6 (24 VDC) |
| Thread | Rc |
| Option | P (High-pressure Pump Mounted) |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8419899890 |

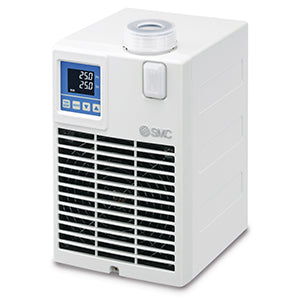

- The HEF compact chiller use a Peltier thermoelectric device, rather than a refrigeration circuit, to extract heat from the cooling loop. This 220W capacity chiller has a next-generation design with a footprint 80% smaller than the HEC-A chiller with similar capacity. Volume is 87% less, and weight is 75% lighter as well. With its compact size and 37~60 dBA low-noise operation, its presence is non-intrusive and compatible in any lab space. The chiller is self-contained with Peltier regulation, fan cooled heat exchanger, pump, coolant tank and power supply. The dustproof filter is replaceable. The user interface includes a 2-line display for settings and operational data. 4 input buttons allow access to set points and data screens.
Key features
- Cooling capacity up to 220 W / heating capacity up to 500 W
- High temperature stability: ±0.1 °C
- Fluid contact material:
- Stainless steel, resin, rubber (material free of aluminium and copper)
- Easy maintenance.
