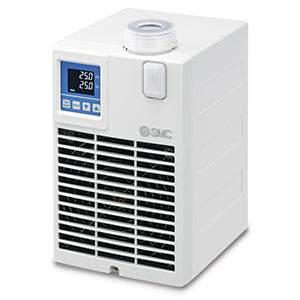

HEF, Compact Thermoelectric Chiller, Air Cooled – HEF002-A6

• The HEF compact chiller use a Peltier thermoelectric device, rather than a refrigeration circuit, to extract heat from the cooling loop.  This 220W capacity chiller has a next-generation design with a footprint 80% smaller than the HEC-A chiller with similar capacity.  Volume is 87% less, and weight is 75% lighter as well.  With its compact size and 37~60 dBA low-noise operation, its presence is non-intrusive and compatible in any lab space.  The chiller is self-contained with Peltier regulation, fan cooled heat exchanger, pump, coolant tank and power supply.  The dustproof filter is replaceable. The user interface includes a 2-line display for settings and operational data.  4 input buttons allow access to set points and data screens.

Key features

• Cooling capacity up to 220 W / heating capacity up to 500 W
• High temperature stability: ±0.1 °C
• Fluid contact material:
• Stainless steel, resin, rubber (material free of aluminium and copper)
• Easy maintenance.

Specifications

• Option: None
• Cooling Capacity: 002 (220 W)
• Power Supply: 6 (24 VDC)
• Thread: Rc

Additional information

• Part number: HEF002-A6
• Lead time (days): 110
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8419899890

Documents

• Catalogue (PDF)
• CAD model
• Datasheet
• Operation manual
• Installation manual
• CE certificate
