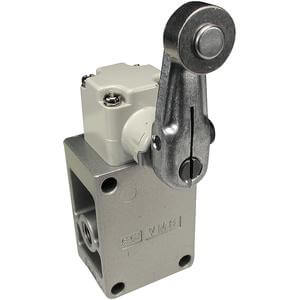

3 PORT MECHANICAL VALVE
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².
Features
- Fluid: air
- Operating pressure: -100kPa to 1.0MPa
- Effective area (Cv): 6mm 2 (0.33)
- Ambient and fluid temperature: -5° to 60°C (no freezing)
- Port size (nominal size): 1/8 (6A)
- European threads G(PF)
Specifications
- Part number: EVM830-F01-14
- Item number: 00096574
- Actuator Type: 14 (Rod Adjustment Lever)
- Lead time: 5 days
- Country of origin: JP
