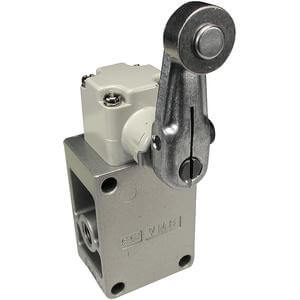

EVM800, 800 Series, 3 Port Mechanical Valve, European | EVM830-F01-01

Mechanical valve

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 18mm².

Features

• Fluid: air
• Operating pressure: -100kPa to 1.0MPa
• Effective area (Cv): 6mm 2 (0.33)
• Ambient and fluid temperature: -5° to 60°C (no freezing)
• Port size (nominal size): 1/8 (6A)
• European threads G(PF)

Specifications

• Part number: EVM830-F01-01
• Item number: 00079394
• Actuator Type: 01 (Roller Lever)
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
