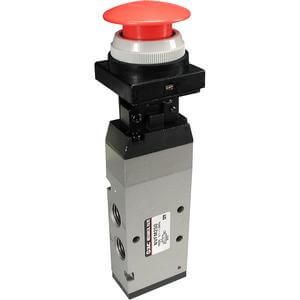

EVFM200, 5 Port Mechanical Valve, Metal Seal, European | EVFM250-F02-33

5 PORT MECHANICAL VALVE

Series VFM is a 5 port, compact, mechanical valve available in a rubber (VFM300) or metal (VFM200) seal style. This series has a large flow capacity (18mm²) and a high cycle rate. The VFM offers an internal or external pilot body option and a variety of actuator choices.

Features

• Fluid: air, inert gas
• Operating pressure range: 0.1 to 1.0MPa
• Effective area (Cv): 18mm 2 (1.0)
• Maximum frequency (mechanical operation style):
• 300 c.p.m. or less
• Weight: 300g

Specifications

• Part number: EVFM250-F02-33
• Item number: 00272887
• Body Option: 0 (Internal Pilot)
• Style: 33 [Push Button (Flush)]
• Suffix: None [Or Polyacetal (Std) in Case of Roller Material)
• Accessory: None
• Lead time: 10 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
