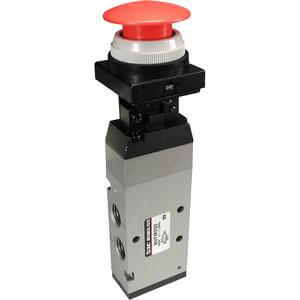

5 PORT MECHANICAL VALVE
Series VFM is a 5 port, compact, mechanical valve available in a rubber (VFM300) or metal (VFM200) seal style. This series has a large flow capacity (18mm²) and a high cycle rate. The VFM offers an internal or external pilot body option and a variety of actuator choices.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 to 1.0MPa
- Effective area (Cv): 18mm 2 (1.0)
- Maximum frequency (mechanical operation style):
- 300 c.p.m. or less
- Weight: 300g
Specifications
- Part number: EVFM250-F02-00
- Item number: 00159847
- Body Option: 0 (Internal Pilot)
- Style: 00 (Basic Style)
- Suffix: None [Or Polyacetal (Std) in Case of Roller Material)
- Accessory: None
- Lead time: 5 days
- Country of origin: JP
