SMC · Rotary Actuators

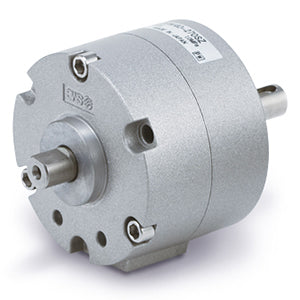

CDRB2BW40-90DZ
excl. VAT · €381,80 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | CDRB2BW40-90DZ |
|---|---|
| Mounting | B (Basic) |
| Angle Adjusting Unit | None |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Rotation Angle - Vane | 90D (Angle: 90 Double Vane) |
| Magnet | D (Built-in) |
| Size | 40 mm |
| Port | Side |
| Auto Switch | No Switch |
| Standard Shaft Type | W (Double Shaft with Single Flat) |
| Lead time (days) | 22 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Torque up to 15 Nm.
- Rotating angle: 90°,100°,180°, 270°.
- Angle adjustment range up to 240°.
- Many variations of shaft-end shape (6 types).
- Port location can be selected: Side or Axial ported.
- Many mounting variations.
Key features
- Standard type.
- Piping ports are located on the flat surface.
- Many variations of shaft-end shape (6 types).
Documents
More part numbers in this series
CDRB2BW10-100DZ€301,98CDRB2BW10-180SZ€160,76CDRB2BW10-270SZ€160,76CDRB2BW10-90DZ€288,97CDRB2BW10-90SZ€160,76CDRB2BW15-100DZ€307,67CDRB2BW15-180SZ€164,23CDRB2BW15-270SZ€164,23CDRB2BW15-90DZ€294,41CDRB2BW15-90SZ€164,23CDRB2BW20-180SZ€169,90CDRB2BW20-270SZ€169,90CDRB2BW20-90DZ€300,15CDRB2BW20-90SZ€169,90CDRB2BW30-100DZ€305,40
