SMC · Rotary Actuators

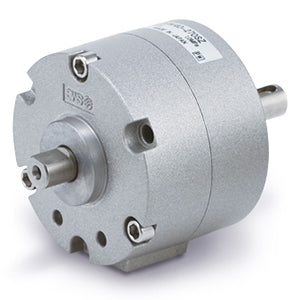

CDRB2BW15-90SZ
excl. VAT · €197,08 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | CDRB2BW15-90SZ |
|---|---|
| Mounting | B (Basic) |
| Angle Adjusting Unit | None |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Rotation Angle - Vane | 90S (Angle: 90 Single Vane) |
| Magnet | D (Built-in) |
| Size | 15 mm |
| Port | Side |
| Auto Switch | No Switch |
| Standard Shaft Type | W (Double Shaft with Single Flat) |
| Lead time (days) | 19 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Torque up to 15 Nm.
- Rotating angle: 90°,100°,180°, 270°.
- Angle adjustment range up to 240°.
- Many variations of shaft-end shape (6 types).
- Port location can be selected: Side or Axial ported.
- Many mounting variations.
Key features
- Standard type.
- Piping ports are located on the flat surface.
- Many variations of shaft-end shape (6 types).
