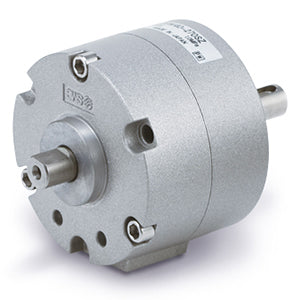

C(D)RB2*W10~40-Z, Rotary Actuator, New Vane Style – CDRB2BW10-90SZ

• Torque up to 15 Nm.
• Rotating angle: 90°,100°,180°, 270°.
• Angle adjustment range up to 240°.
• Many variations of shaft-end shape (6 types).
• Port location can be selected: Side or Axial ported.
• Many mounting variations.

Key features

• Standard type.
• Piping ports are located on the flat surface.
• Many variations of shaft-end shape (6 types).

Specifications

• Mounting: B (Basic)
• Angle Adjusting Unit: None
• Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
• Number: 2 pcs. (Or None in the Case of No Switch)
• Rotation Angle - Vane: 90S (Angle: 90 Single Vane)
• Magnet: D (Built-in)
• Size: 10 mm
• Port: Side
• Auto Switch: No Switch
• Standard Shaft Type: W (Double Shaft with Single Flat)

Additional information

• Part number: CDRB2BW10-90SZ
• Lead time (days): 19
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8479899790
