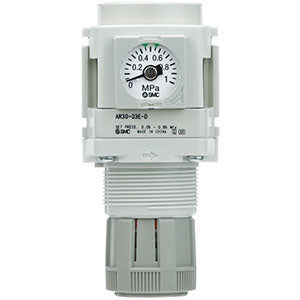

REGULATOR WITH BACK FLOW MECHANISM
Modular-style Regulator Up to 0.85 MPa set pressure Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR20K-F01E-D
- Item number: 02121441
- Body Size: 20
- Backflow Function: K (w/Backflow Function)
- Thread: F (G)
- Port Size: 01 (1/8)
- Options: E [w/Square Embedded Type Pressure Gauge (w/Limit Indicator)]
- Set pressure: 0.05 to 0.85 MPa Setting
- Exhaust Mechanism: Relieving
- Flow Direction: Left to Right
- Knob: Downward
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge: MPa)
- Lead time: 110 days
- Country of origin: CZ
