SMC · Regulators
AR20-F02H-D
excl. VAT · €29,95 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Next-business-day delivery in Bulgaria for in-stock parts
In stock
Need volume pricing or a special version? Request a quote →
| Part number | AR20-F02H-D |
|---|

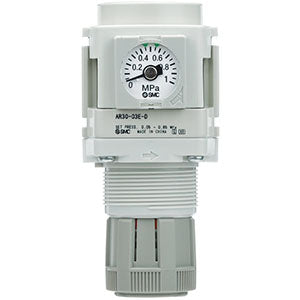

MODULAR STYLE REGULATOR
Modular-style Regulator Up to 0.85 MPa set pressure Maximum flow rate up to 20000 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Up to 0.85 MPa set pressure
- Maximum flow rate up to 5000 l/min (ANR, 0.7MPa).
Specifications
- Part number: AR20-F02H-D
- Item number: 02124032
- Body Size: 20
- Backflow Function: None
- Thread: F (G)
- Port Size: 02 (1/4)
- Options: H (w/Set Nut, for Panel Mount)
- Set pressure: 0.05 to 0.85 MPa Setting
- Exhaust Mechanism: Relieving
- Flow Direction: Left to Right
- Knob: Downward
- Pressure Units: Standard (Name Plate, Caution Plate for Bowl, and Pressure Gauge
- Lead time: 5 days
- Country of origin: JP
