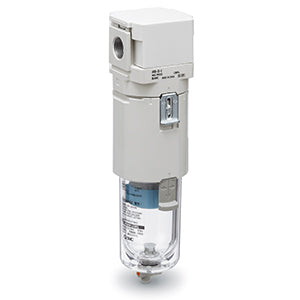

MIST SEPARATOR
The AM*-D mist separators are designed for modular connectability and to match the aesthetics of the AC-D series of FRL components. Flow capabilities are improved beyond the legacy AM series for extended applicability. These coalescing filters are nominally rated at 0.1 micron for an initial stage of oil removal after a particulate filter.
Features
- Modular style mist separator compliant with ISO 8573
- Nominal filtration rating 0.1 µm
- Connection size 1/8 to 2.
Specifications
- Part number: AM40-F03D-D
- Item number: 02167399
- Mounting: w/o Mounting Option
- Drain Port: With Drain Cock
- Float type auto drain: D [N.O. (Normally Open)]
- Drain Cock w/Barb Fitting: None
- Size: 40
- Port Size: 03 (3/8)
- Pressure Unit: Name Plate and Pressure Gauge: MPa
- Thread Type: F (G)
- Flow Direction: Left to Right
- Bowl: Sizes 20, 30, 40: Polycarbonate Bowl; Sizes 50, 60: Stainless Steel
- Indicator: w/o Indicator
- Lead time: 6 days
- Country of origin: CZ
