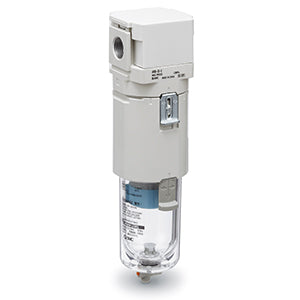

MIST SEPARATOR
The AM*-D mist separators are designed for modular connectability and to match the aesthetics of the AC-D series of FRL components. Flow capabilities are improved beyond the legacy AM series for extended applicability. These coalescing filters are nominally rated at 0.1 micron for an initial stage of oil removal after a particulate filter.
Features
- Modular style mist separator compliant with ISO 8573
- Nominal filtration rating 0.1 µm
- Connection size 1/8 to 2.
Specifications
- Part number: AM30-F02-D
- Item number: 02036431
- Size: 30
- Thread Type: F (G)
- Port Size: 02 (1/4)
- Mounting: w/o Mounting Option
- Float type auto drain: Without Auto drain
- Bowl: Sizes 20, 30, 40: Polycarbonate Bowl; Sizes 50, 60: Stainless Steel
- Drain Port: With Drain Cock
- Indicator: w/o Indicator
- Flow Direction: Left to Right
- Drain Cock w/Barb Fitting: None
- Pressure Unit: Name Plate and Pressure Gauge: MPa
- Lead time: 6 days
- Country of origin: CZ
