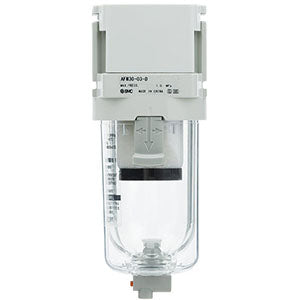

AFM20-D to AFM40-D, Mist Separator | AFM30-F02-D
€63,53
Skip to product information
AFM20-D to AFM40-D, Mist Separator | AFM30-F02-D
€63,53
VAT not included.
MIST SEPARATOR
Modular-style Mist Separator ISO 8573-1:2010 compliant Nominal filtration rating 0.3 µm Maximum flow rate up to 1100 l/min (ANR, 0.7MPa).
Features
- ISO 8573-1:2010 compliant
- Nominal filtration rating 0.3 µm
- Maximum flow rate up to 1100 l/min (ANR, 0.7MPa).
Specifications
- Part number: AFM30-F02-D
- Item number: 02189695
- Mounting: w/o Mounting Option
- Drain Port: Standard
- Float type auto drain: Without Auto drain
- Body Size: 30
- Drain Cock w/Barb Fitting: None
- Port Size: 02 (1/4)
- Pressure Unit: Name Plate and Pressure Gauge: MPa
- Bowl type: Polycarbonate Bowl
- Flow Direction: Left to Right
- Indicator: w/o Indicator
- Thread: F (G)
- Lead time: 115 days
- Country of origin: CZ
