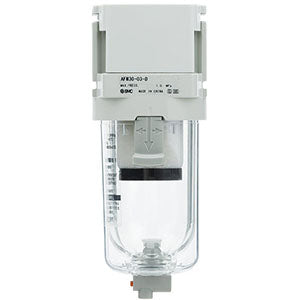

AFM20-D to AFM40-D, Mist Separator | AFM20-F02C-D

MIST SEPARATOR

Modular-style Mist Separator ISO 8573-1:2010 compliant Nominal filtration rating 0.3 µm Maximum flow rate up to 1100 l/min (ANR, 0.7MPa).

Features

• ISO 8573-1:2010 compliant
• Nominal filtration rating 0.3 µm
• Maximum flow rate up to 1100 l/min (ANR, 0.7MPa).

Specifications

• Part number: AFM20-F02C-D
• Item number: 02102112
• Body Size: 20
• Thread: F (G)
• Port Size: 02 (1/4)
• Mounting: w/o Mounting Option
• Float type auto drain: C [Float Type Auto Drain (N.C.)]
• Bowl type: Polycarbonate Bowl
• Filter Regulator Drain Port: Standard
• Flow Direction: Left to Right
• Drain Cock w/Barb Fitting: None
• Pressure Unit: Name Plate and Pressure Gauge
• Lead time: 5 days
• Country of origin: CN

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
