SMC · Vacuum Switches
ZSE20B-T-M5-WD
excl. VAT · €232,36 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | ZSE20B-T-M5-WD |
|---|---|
| Vacuum switch with display | |
| M5 | |
| IP65 | |
| range | 0 to -101 kPa |
| output signal | 2xPNP + 1-5 V |
| supply | 12-24 V DC |
| panel mounting | |
| cable with insulated connector 2 m | |
| front protective cover | |
| Country of origin | JP |
| TARIC code | 9026202000 |

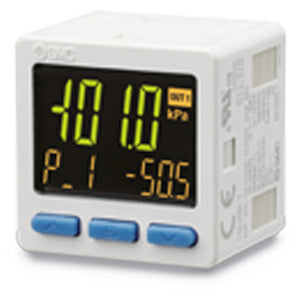

ZSE20B(F), High-Precision Digital Pressure Switch, 3-Screen Display (IP65)
Key features
- 3-Screen Display High-Precision Digital Pressure Switch.
- 2 outputs + Analogue output (Voltage/Current) + IO-Link.
- IP65.
- Applicable fluid: Air, Non-corrosive gas, Non-flammable gas.
- Pressure range: -101 to 100 kPa.
- Repeatability: ±0.2 % F.S.
- Response time: 1.5 ms or less.
- Consumption: 35mA or less.
- e-CON connector, rear wiring type.
