Request a quote

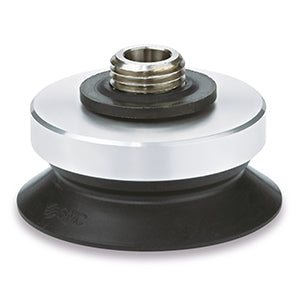

SMC · Vacuum Pads
ZP3E-T100BMN-B12
excl. VAT · €63,40 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZP3E-T100BMN-B12 |
|---|---|
| Pad Diameter | 100 (ø100) |
| Pad Material | N (NBR) |
| Thread Size | B12 (M12 x 1.75, Female Thread) |
| Lead time (days) | 7 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479907099 |
- To be used when no space to install a buffer or when the adsorption surface is slanted
Key features
- Pad Sizes: Ø 32 to Ø 125 mm
- Shapes: Bellows Type with Ribs and Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM, Mark-free NBR
- Options: Male and Female Thread Vertical Vacuum Inlet.
