SMC · Vacuum Pads

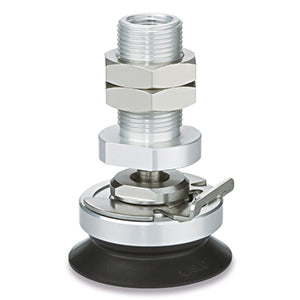

ZP3E-TF50BMS-AL14
excl. VAT · €64,85 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | ZP3E-TF50BMS-AL14 |
|---|---|
| Pad Diameter | 50 (ø50) |
| Pad Material | S (Silicone Rubber) |
| Thread Size | AL14 (M14 x 1, Male Thread, Plate Connector) |
| Lead time (days) | 24 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479907099 |
- To be used when no space to install a buffer or when the adsorption surface is slanted
Key features
- Pad Sizes: Ø 32 - Ø 125 mm
- Shapes: Bellows Type with Ribs and Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM, Mark-free NBR
- Options: Male and Female Thread Vertical Vacuum Inlet with Ball Joint.
