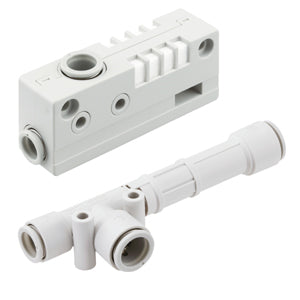

SMC · Vacuum Ejectors
ZH18BSA-F03-F03
excl. VAT · €111,05 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ZH18BSA-F03-F03 |
|---|---|
| Accessories | W/ Bracket - W/o Silencer (or None in the Case of Box Style) |
| Nozzle Diameter | 18 (Ø 1.8 mm) |
| Model | B (Box Style) |
| Port SUP. | F03 (G 3/8) |
| Port EXH. | None |
| Vacuum Pressure | S [-90 kPa; -89 kPa (Box Style)] |
| Port VAC. | F03 (G 3/8) |
| Lead time (days) | 23 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8414108990 |
- Body ported type/ Box type vacuum ejector. Compact and lightweight
- Suction flow rate up to 155 l/min
- Nozzle diameters: 0.5, 0.7, 1, 1.3, 1.5, 1.8 and 2 mm
- Multiple piping variations: One-touch fittings and screw-in connections (G/Rc/NPT)
- 4 mounting types: direct, standard bracket, L-bracket or DIN rail.
Key features
- One-touch fittings: Ø 6, 8, 10 and 12 mm. Screw-in connections: 1/8" to 1/2" (Rc/G).
