SMC · Other Vacuum Equipment
ZCDUKC20-40D
excl. VAT · €183,91 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | ZCDUKC20-40D |
|---|---|
| Magnet | D (Built-in Magnet) |
| VAC Side Tube/Rod End Shape | C (Cap Piping/Male Thread) |
| Bore Size | 20mm |
| Port Thread | M5x0.8 (Bore 10, 16, 20, 25), Rc1/8 (Bore 32) |
| Stroke | 40mm |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |

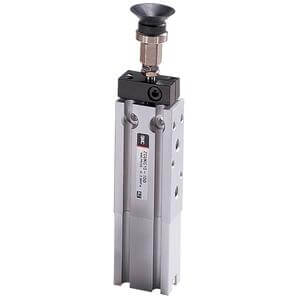

- The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.
