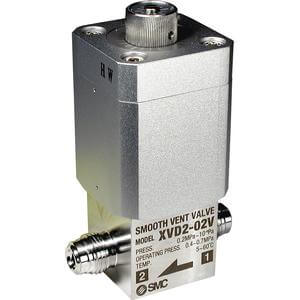

- Smooth vent valve series XVD2 is a normally closed type valve with connection types VCR (male & female) and Swagelok. Port size for the main supply is 1/4" and orifice is 3mm. Materials consist of SUS316L (body & bellows), SUS304 (diaphragm) and FKM (valve and external seal).
Key features
- High vacuum valve, smooth vent
- Operating pressure (Pa): 0.2M~10<sup> -6</sup>
- Operating fluid: nitrogen, air
- Valve style: normally closed
- Material: SUS316L, SUS304, FKM
Specifications
- Connection: S (Swagelok)
Additional information
- Part number: XVD2-02S
- Lead time (days): 23
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481807390
