SMC · Process Valves
VXB215AAL
excl. VAT · €205,27 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | VXB215AAL |
|---|---|
| Body material/Port size/Orifice diameter | A (Bronze, 3/8, 11) |
| Pressure Type | Standard |
| Thread Type | A (G) |
| Indicator | L (Yes) |
| Special Option | None |
| Lead time (days) | 21 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

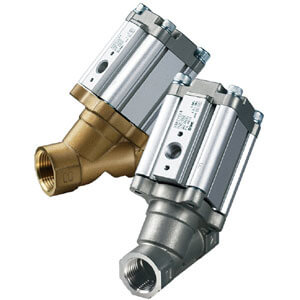

- Angle seat valve, air operated type
- Applicable fluid: steam, water and air
- Flow rates up to 108 l/min. Orifice diameter: 11 to 18 mm
- Port size: 3/8" to 3/4"
- Long life service: up to 5 million cycles
- Body material: stainless steel 316L equivalent, bronze.
Key features
- For steam (can also be used with air and water)
- Low pressure loss due to angle seat structure
- Low leakage of 10 cm3/min or less (rubber seal)
- Long service life: 3 million cycles (steam) 5 million cycles (air)
- Body material: stainless steel 316L equivalent, bronze (CAC)
