SMC · Process Valves
VXB215FHA
excl. VAT · €260,02 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | VXB215FHA |
|---|---|
| Body material/Port size/Orifice diameter | F (Stainless Steel, 316 L Equivalent, 3/4, Ø18 mm) |
| Pressure Type | H (High Pressure) |
| Thread Type | A (G) |
| Indicator | No |
| Special Option | None |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481807990 |

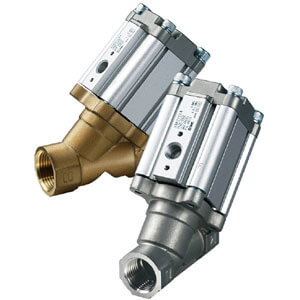

- Angle seat valve, air operated type
- Applicable fluid: steam, water and air
- Flow rates up to 108 l/min. Orifice diameter: 11 to 18 mm
- Port size: 3/8" to 3/4"
- Long life service: up to 5 million cycles
- Body material: stainless steel 316L equivalent, bronze.
Key features
- For steam (can also be used with air and water)
- Low pressure loss due to angle seat structure
- Low leakage of 10 cm3/min or less (rubber seal)
- Long service life: 3 million cycles (steam) 5 million cycles (air)
- Body material: stainless steel 316L equivalent, bronze (CAC)
