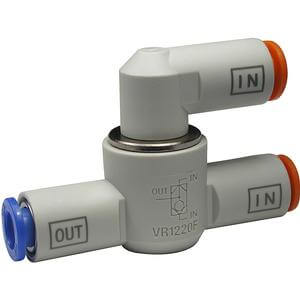

VR12*0F, Transmitter - Shuttle Valve with One-touch Fitting – VR1210F-23

VR12*0F, Transmitter - Shuttle Valve with One-touch Fitting

Key features

• Maximum operating pressure: 1MPa (145 psi)
• Minimum operating pressure: 0.05MPa (7 psi)
• Proof pressure: 1.5MPa (218 psi)
• Ambient and fluid temp: -5° to 60°C (23° to 140°F) (with no freezing)

Specifications

• OR logic element (shuttle valve)
• tube Ø3.2

Additional information

• Part number: VR1210F-23
• Country of origin: JP
• TARIC code: 8481209090

Documents

• Installation manual
• Installation manual
• CAD model (STEP)
