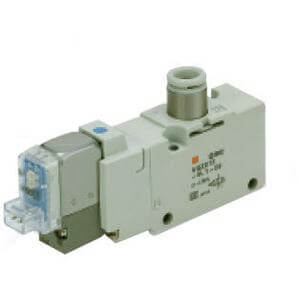

VQZ**2, 200/300 Series, 3 Port Solenoid Valve, Body Ported | VQZ312B-5MOB1-02F-Q

3 PORT SOLENOID VALVE

Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.

Features

• Fluid: air, inert gas
• Operating pressure range: 0.1 - 0.7MPa
• (high pressure style: 1.0MPa)
• mm²: VQZ200 7,2 - 10,9; VQZ300 13,6 - 16,3
• Coil rated voltage: 12, 24VDC;
• 100, 110, 200, 220VAC
• Response time:
• VQZ200 metal seal 14ms or less; rubber seal 15ms or less
• VQZ300 metal seal 17ms or less; rubber seal 25ms or less

Specifications

• Part number: VQZ312B-5MOB1-02F-Q
• Item number: 02991454
• Series: 3 (VQZ300)
• Type of Actuation: 1 (Metal Seal N.C.)
• Configuration: B (High Speed Response, 0.9W)
• IP65 Compliant: None
• Port Size: 02 (Rc1/4)
• Coil Voltage: 5 (24VDC)
• Option: None
• Thread Type: F (G)
• Lead Wire: MO (M Plug w/o Connector)
• Manual Override: B (Locking Slotted Style)
• Lead time: 18 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• Installation manual
• CE certificate
• CE certificate 2
• CE certificate 3
